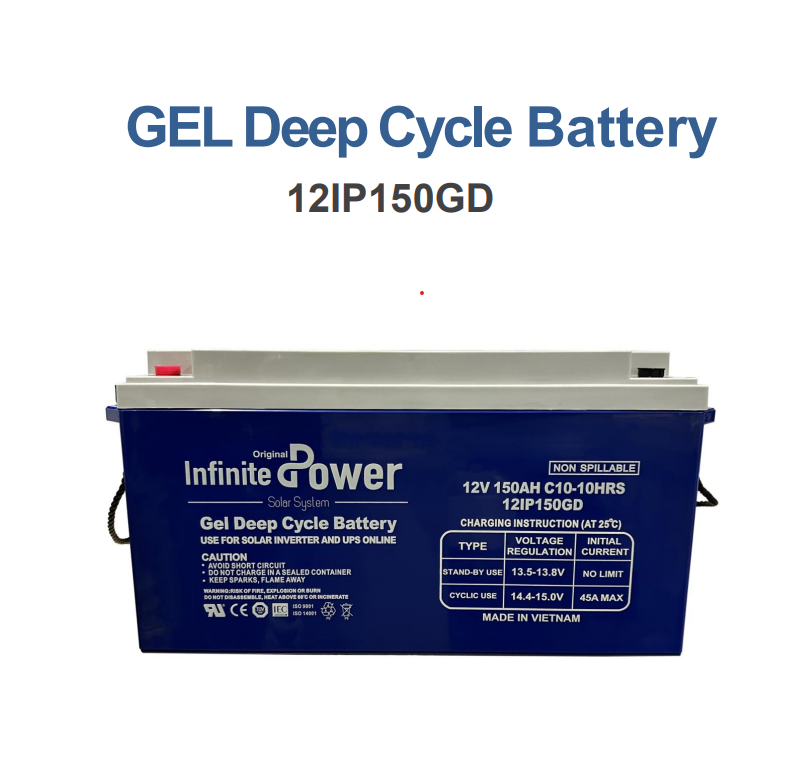

INFINITE GEL Deep Cycle Battery — 12IP150GD [12V 150Ah]

INFINITE GEL Deep Cycle Battery — 12IP150GD [12V 150Ah]

0 review

Rated 5 out of 5

Designed floating charging service life: 12 years (25ºC)
By using strong grids, high purity lead and patented Gel electrolyte
Safety valve installation for explosion proof, Sealed and maintenance free operation
Extremely low self-discharge characteristic
Wide operating temperature range from -20ºC~55ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Designed floating charging service life: 12 years (25ºC)
By using strong grids, high purity lead and patented Gel electrolyte
Safety valve installation for explosion proof, Sealed and maintenance free operation
Extremely low self-discharge characteristic
Wide operating temperature range from -20ºC~55ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Chat on WhatsApp

Categories GEL Deep Cycle Battery, INFINITE

Nominal Voltage	12V
Nominal Capacity (10HR)	150AH
Length (L)	485±3mm
Width (W)	170±2mm
Height (H)	240±3mm
Total Height (TH)	240±3mm
Weight ±3%	Approx 41.4kg
Internal Resistance	≈3.7 mΩ
Standard Terminals	T23 (standard)

Rated Capacity
20 hour rate (7.5A)	156.4AH
10 hour rate (15.0A)	150.0AH
5 hour rate (25.5A)	127.5AH
3 hour rate (37.5A)	112.5AH
1 hour rate (90.0A)	93.0AH

Capacity affected by Temperature
40ºC (104ºF)	103%
25ºC (77ºF)	100%
0ºC (32ºF)	86%

Cycle Application

Limit initial current less than 45.0A.
Charge until battery voltage (under charge) reaches 14.1V to 14.4V at 25ºC (77ºF).
Hold at 14.1V to 14.4V until current drop to under 0.90A for at least 3 hours.
Temperature compensation coefficient of charging voltage is -30mV/ºC.

Standby Service

Hold battery across constant voltage source of 13.6 to 13.8 volts with current limit 45.0A continuously. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charge status.
Temperature compensation coefficient of charging voltage is -18mV/ºC.

End Voltage (V)	Minute (M)				Hour (H)
End Voltage (V)	10	15	30	45	1	1.5	2	3	5	8	10	20
Constant Current Discharge Data Sheet (@25ºC) Unit: A
9.6V	322	254	143	123	84	66	56	35.3	24.4	16.5	14.0	7.18
9.9V	307	242	136	119	82	64	54	34.4	23.8	16.1	13.8	7.14
10.2V	292	230	130	115	80	63	53	33.8	23.3	15.7	13.7	7.09
10.5V	278	221	124	111	77	61	51	32.8	23.0	15.4	13.6	7.04
10.8V	264	209	118	107	75	60	50	31.9	22.2	15.1	13.5	7.00

End Voltage (V)	Minute (M)				Hour (H)
End Voltage (V)	10	15	30	45	1	1.5	2	3	5	8	10	20
Constant Power Discharge Data Sheet (@25ºC) Unit: W
9.6V	3307	2895	1769	1239	1033	752	562	421	270	206	158	86
9.9V	3148	2754	1685	1198	1007	733	550	410	263	201	157	85
10.2V	3000	2625	1606	1157	982	716	536	399	258	197	155	84
10.5V	2856	2501	1529	1118	958	699	524	390	250	193	153	83
10.8V	2720	2381	1455	1080	935	681	510	381	245	191	152	82

Description
Reviews (0)

Description

Designed floating charging service life: 12 years (25ºC)
By using strong grids, high purity lead and patented Gel electrolyte
Safety valve installation for explosion proof, Sealed and maintenance free operation
Extremely low self-discharge characteristic
Wide operating temperature range from -20ºC~55ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion
