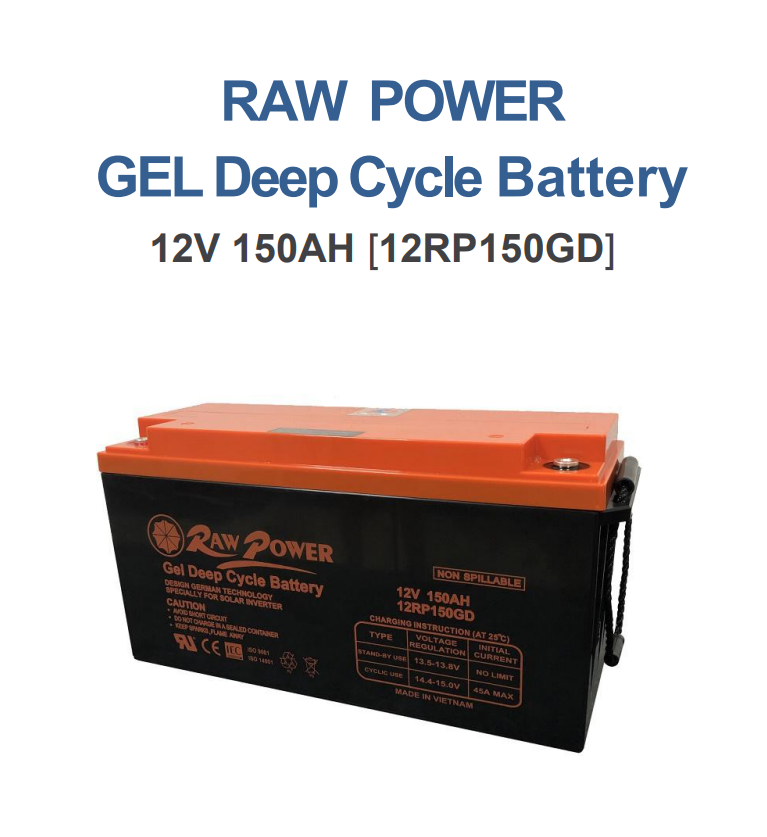

RAW POWER GEL Deep Cycle Battery — 12V 150AH [12RP150GD]

RAW POWER GEL Deep Cycle Battery — 12V 150AH [12RP150GD]

0 review

Rated 5 out of 5

Designed floating charging service life: 13 years (25ºC)
Safety valve installation for explosion proof, Sealed and maintenance free operation
Nano-sized gas-phase SiO2 electrolyte was prepared with unique formula
Extremely low self-discharge characteristic
Wide operating temperature range from -10ºC~50ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Designed floating charging service life: 13 years (25ºC)
Safety valve installation for explosion proof, Sealed and maintenance free operation
Nano-sized gas-phase SiO2 electrolyte was prepared with unique formula
Extremely low self-discharge characteristic
Wide operating temperature range from -10ºC~50ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Chat on WhatsApp

Categories GEL Deep Cycle Battery, RAW POWER

Nominal Voltage	12V
Nominal Capacity (10HR)	150AH
Length (L)	485±3mm
Width (W)	170±2mm
Height (H)	240±3mm
Total Height (TH)	240±3mm
Weight ±3%	Approx 46.25kg (101.9lbs)
Internal Resistance	≈3.10 mΩ
Standard Terminals	T23 (standard)

Rated Capacity
20 hour rate (7.5A)	159.0AH
10 hour rate (15.0A)	150.0AH
5 hour rate (25.5A)	127.5AH
3 hour rate (37.5A)	114.0AH
1 hour rate (90.0A)	90.0AH

Capacity affected by Temperature
40ºC (104ºF)	103%
25ºC (77ºF)	100%
0ºC (32ºF)	86%

Cycle Application

Limit initial current less than 45A.
Charge until battery voltage (under charge) reaches 14.1V to 14.4V at 25ºC (77ºF).
Hold at 14.1V to 14.4V until current drop to under 0.90A for at least 3 hours.
Temperature compensation coefficient of charging voltage is -30mV/ºC.

Standby Service

Hold battery across constant voltage source of 13.6 to 13.8 volts with current limit 45A continuously. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charge status.
Temperature compensation coefficient of charging voltage is -18mV/ºC.

End Voltage (V)	Minute (M)					Hour (H)
End Voltage (V)	5	10	15	30	45	1	1.5	2	3	5	8	10	20
Constant Current Discharge Data Sheet (Amperes at 25ºC)
10.20	475	362	273	144.9	133.8	94.2	74.37	62.29	39.05	27.12	19.29	15.75	8.08
10.50	422	332	255	138.9	127.8	90.5	71.45	60.08	37.74	25.89	18.25	15.58	8.00
10.80	391	302	239	133.8	121.8	86.6	68.53	57.66	36.43	24.78	17.34	15.33	7.90

End Voltage (V)	Minute (M)					Hour (H)
End Voltage (V)	5	10	15	30	45	1	1.5	2	3	5	8	10	20
Constant Power Discharge Data Sheet (Watt at 25ºC)
10.20	4725	4000	2879	1808	1359	1180	860	648	483	312	231	196.2	102.9
10.50	4544	3396	2584	1767	1328	1162	847	627	468	302	228	190.2	99.6
10.80	4227	3170	2468	1729	1283	1110	809	606	452	291	225	181.1	97.4

Description
Reviews (0)

Description

Designed floating charging service life: 13 years (25ºC)
Safety valve installation for explosion proof, Sealed and maintenance free operation
Nano-sized gas-phase SiO2 electrolyte was prepared with unique formula
Extremely low self-discharge characteristic
Wide operating temperature range from -10ºC~50ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion
