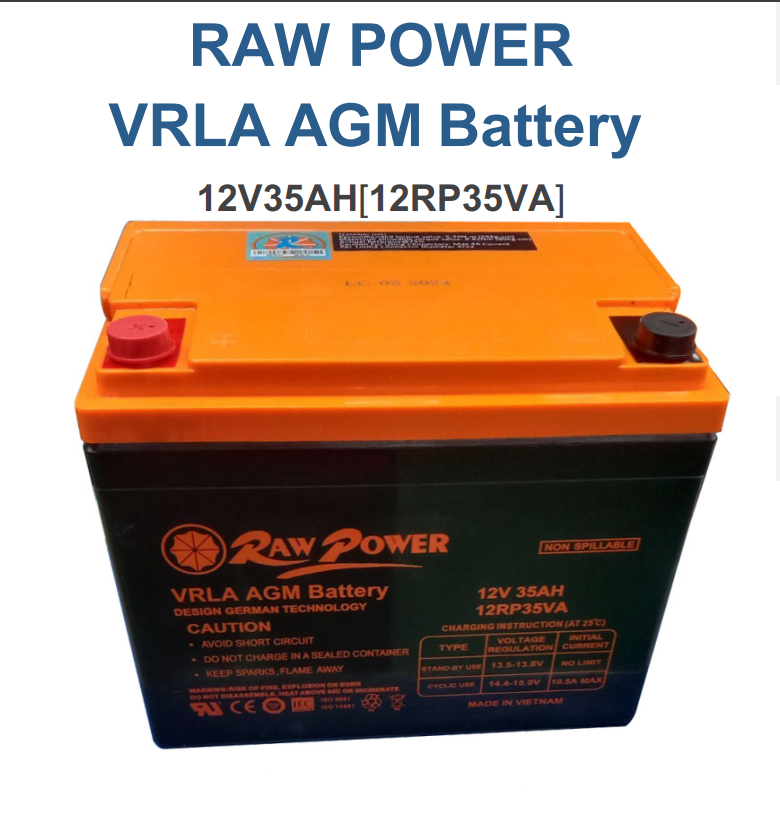

RAW POWER VRLA AGM Battery — 12V 35AH [12RP35VA]

RAW POWER VRLA AGM Battery — 12V 35AH [12RP35VA]

0 review

Rated 5 out of 5

Designed floating charging service life: 8 years (25ºC)
Sealed and maintenance free operation
Safety valve installation for explosion proof
Low self-discharge characteristic
Wide operating temperature range from 0ºC~40ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Designed floating charging service life: 8 years (25ºC)
Sealed and maintenance free operation
Safety valve installation for explosion proof
Low self-discharge characteristic
Wide operating temperature range from 0ºC~40ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Chat on WhatsApp

Categories RAW POWER, VRLA AGM Battery

Nominal Voltage	12V
Nominal Capacity (20HR)	35AH
Length (L)	196±2mm
Width (W)	130±2mm
Height (H)	158±2mm
Total Height (TH)	162±2mm
Weight ±3%	Approx 10.10kg (22.27lbs)
Internal Resistance	≈8 mΩ
Standard Terminals	T06 (standard)

Rated Capacity
20 hour rate (1.65A)	35 AH
10 hour rate (3.30A)	33.00AH
5 hour rate (5.61A)	27.55AH
27 minute rate (33A)	17.50AH
7 minute rate (99A)	11.55AH

Capacity affected by Temperature
40ºC (104ºF)	103%
25ºC (77ºF)	100%
0ºC (32ºF)	86%

Cycle Application

Limit initial current less than 8.25A.
Charge until battery voltage (under charge) reaches 14.1V to 14.4V at 25ºC (77ºF).
Hold at 14.1V to 14.4V until current drop to under 0.198A for at least 3 hours.
Temperature compensation coefficient of charging voltage is -30mV/ºC.

Standby Service

Hold battery across constant voltage source of 13.6 to 13.8 volts with current limit 8.25A continuously. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charge status.
Temperature compensation coefficient of charging voltage is -18mV/ºC.

End Voltage (V)	Minute (M)					Hour (H)
End Voltage (V)	5	10	15	30	45	1	1.5	2	3	5	8	10	20
Constant Current Discharge Data Sheet (Amperes at 25ºC)
10.20	122.5	80.0	62.7	32.0	23.2	19.9	15.75	11.60	8.81	5.69	3.81	3.35	1.76
10.50	121.5	79.2	62.0	31.7	23.1	19.8	15.50	11.20	8.54	5.58	3.77	3.32	1.75
10.80	120.4	78.3	61.4	31.5	23.0	19.7	15.25	10.80	8.26	5.47	3.73	3.30	1.690

End Voltage (V)	Minute (M)					Hour (H)
End Voltage (V)	5	10	15	30	45	1	1.5	2	3	5	8	10	20
Constant Power Discharge Data Sheet (Watt at 25ºC)
10.20	1325	955	773	437	318	242	185.7	139.7	99.71	65.72	46.29	37.46	20.17
10.50	1269	923	750	428	311	238	183.0	137.7	97.45	64.97	45.91	36.90	19.88
10.80	1203	889	726	415	303	234	180.3	135.8	95.76	64.22	45.44	36.28	19.60

Description
Reviews (0)

Description

Designed floating charging service life: 8 years (25ºC)
Sealed and maintenance free operation
Safety valve installation for explosion proof
Low self-discharge characteristic
Wide operating temperature range from 0ºC~40ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion
