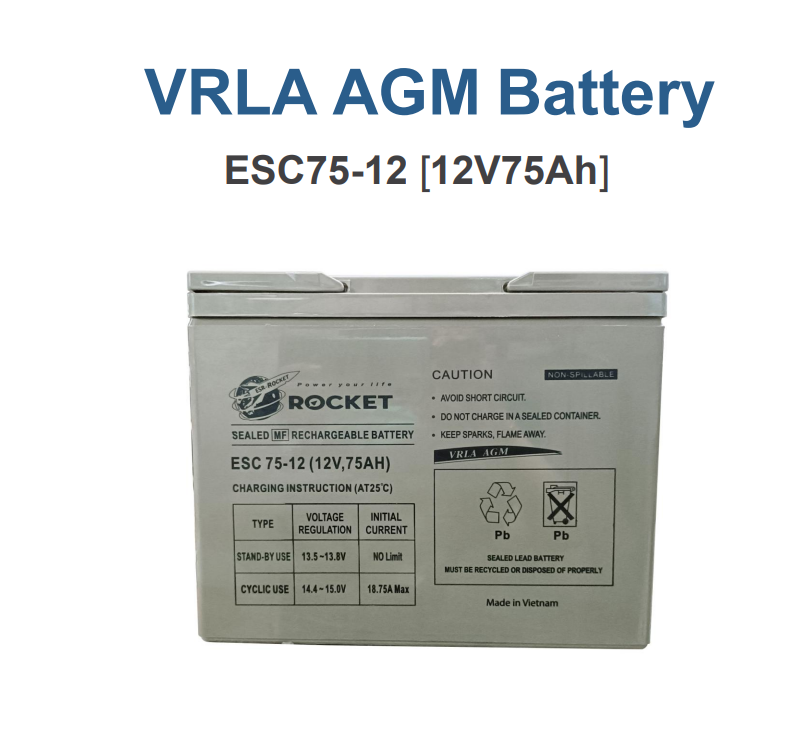

ROCKET VRLA AGM Battery — ESC75-12 [12V 75Ah]

ROCKET VRLA AGM Battery — ESC75-12 [12V 75Ah]

0 review

Rated 5 out of 5

Designed floating charging service life: 12 years (25ºC)
Sealed and maintenance free operation
Safety valve installation for explosion proof
Low self-discharge characteristic
Wide operating temperature range from 0ºC~40ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Designed floating charging service life: 12 years (25ºC)
Sealed and maintenance free operation
Safety valve installation for explosion proof
Low self-discharge characteristic
Wide operating temperature range from 0ºC~40ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Chat on WhatsApp

Categories ROCKET, VRLA AGM Battery

Nominal Voltage	12V
Nominal Capacity (10HR)	75AH
Length (L)	259±3mm
Width (W)	168±2mm
Height (H)	208±3mm
Total Height (TH)	212±3mm
Weight ±3%	Approx 22.0kg (48.5lbs)
Internal Resistance	≈7.5 mΩ
Standard Terminals	T22 (standard)

Rated Capacity
20 hour rate (3.75A)	79.8AH
10 hour rate (7.5A)	75.0AH
5 hour rate (12.75A)	64.5AH
3 hour rate (18.75A)	57.0AH
1 hour rate (45.0A)	47.7AH

Capacity affected by Temperature
40ºC (104ºF)	103%
25ºC (77ºF)	100%
0ºC (32ºF)	86%

Cycle Application

Limit initial current less than 18.75A.
Charge until battery voltage (under charge) reaches 14.1V to 14.4V at 25ºC (77ºF).
Hold at 14.1V to 14.4V until current drop to under 0.45A for at least 3 hours.
Temperature compensation coefficient of charging voltage is -30mV/ºC.

Standby Service

Hold battery across constant voltage source of 13.6 to 13.8 volts with current limit 18.75A continuously. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charge status.
Temperature compensation coefficient of charging voltage is -18mV/ºC.

Description
Reviews (0)

Description

Designed floating charging service life: 12 years (25ºC)
Sealed and maintenance free operation
Safety valve installation for explosion proof
Low self-discharge characteristic
Wide operating temperature range from 0ºC~40ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion
