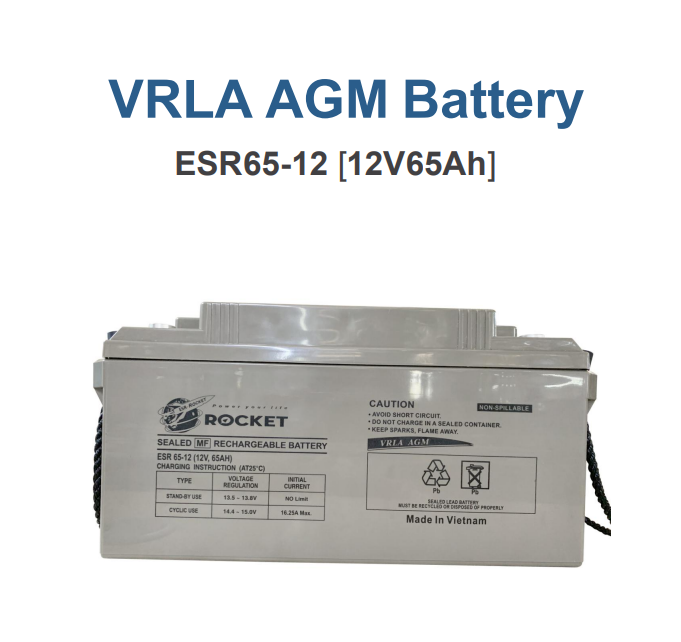

ROCKET VRLA AGM Battery — ESR65-12 [12V 65Ah]

ROCKET VRLA AGM Battery — ESR65-12 [12V 65Ah]

0 review

Rated 5 out of 5

Chat on WhatsApp

Categories ROCKET, VRLA AGM Battery

Nominal Voltage	12V
Nominal Capacity (10HR)	65AH
Length (L)	350±3mm
Width (W)	167±2mm
Height (H)	173±2mm
Total Height (TH)	173±2mm
Weight ±3%	Approx 19.5kg (42.99lbs)
Internal Resistance	≈8.0 mΩ
Standard Terminals	T11 (standard)

Rated Capacity
20 hour rate (3.25A)	68.0AH
10 hour rate (6.50A)	65.0AH
5 hour rate (11.05A)	56.0AH
3 hour rate (16.25A)	49.1AH
1 hour rate (39.0A)	41.4AH

Capacity affected by Temperature
40ºC (104ºF)	103%
25ºC (77ºF)	100%
0ºC (32ºF)	86%

Cycle Application

Limit initial current less than 16.25A.
Charge until battery voltage (under charge) reaches 14.1V to 14.4V at 25ºC (77ºF).
Hold at 14.1V to 14.4V until current drop to under 0.42A for at least 3 hours.
Temperature compensation coefficient of charging voltage is -30mV/ºC.

Standby Service

Hold battery across constant voltage source of 13.6 to 13.8 volts with current limit 16.25A continuously. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charge status.
Temperature compensation coefficient of charging voltage is -18mV/ºC.
