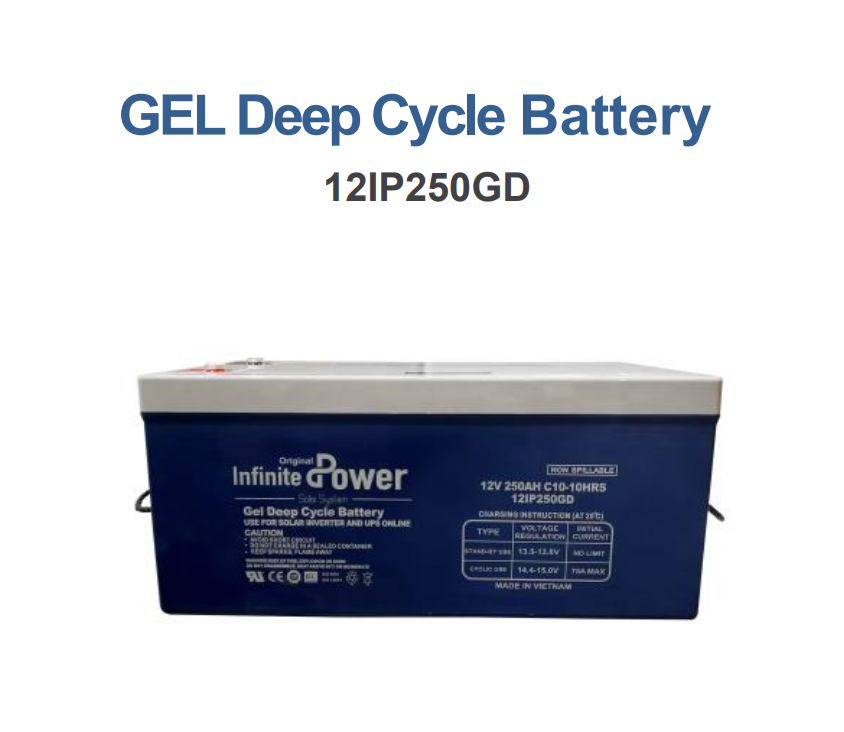

INFINITE GEL Deep Cycle Battery — 12IP250GD [12V 250Ah]

INFINITE GEL Deep Cycle Battery — 12IP250GD [12V 250Ah]

0 review

Rated 5 out of 5

Designed floating charging service life: 12 years (25ºC)
By using strong grids, high purity lead and patented Gel electrolyte
Safety valve installation for explosion proof, Sealed and maintenance free operation
Extremely low self-discharge characteristic
Wide operating temperature range from -20ºC~55ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Designed floating charging service life: 12 years (25ºC)
By using strong grids, high purity lead and patented Gel electrolyte
Safety valve installation for explosion proof, Sealed and maintenance free operation
Extremely low self-discharge characteristic
Wide operating temperature range from -20ºC~55ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Chat on WhatsApp

Categories GEL Deep Cycle Battery, INFINITE

Nominal Voltage	12V
Nominal Capacity (10HR)	250AH
Length (L)	520±3mm
Width (W)	268±3mm
Height (H)	220±3mm
Total Height (TH)	224±3mm
Weight ±3%	Approx 70.0kg
Internal Resistance	≈3.3 mΩ
Standard Terminals	T24 (standard)

Rated Capacity
20 hour rate (12.5A)	266.0AH
10 hour rate (25.0A)	250.0AH
5 hour rate (42.5A)	212.5AH
3 hour rate (62.5A)	189.0AH
1 hour rate (150.0A)	152.0AH

Capacity affected by Temperature
40ºC (104ºF)	103%
25ºC (77ºF)	100%
0ºC (32ºF)	86%

Cycle Application

Limit initial current less than 50.0A.
Charge until battery voltage (under charge) reaches 14.1V to 14.4V at 25ºC (77ºF).
Hold at 14.1V to 14.4V until current drop to under 1.44A for at least 3 hours.
Temperature compensation coefficient of charging voltage is -30mV/ºC.

Standby Service

Hold battery across constant voltage source of 13.6 to 13.8 volts with current limit 50.0A continuously. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charge status.
Temperature compensation coefficient of charging voltage is -18mV/ºC.

End Voltage (V)	Minute (M)				Hour (H)
End Voltage (V)	10	15	30	45	1	1.5	2	3	5	8	10	20
Constant Current Discharge Data Sheet (@25ºC) Unit: A
9.6V	565	447	251	217	147	117	97	62	43.0	29.5	24.8	12.8
9.9V	540	427	240	210	144	114	96	61	42.1	29.1	24.6	12.7
10.2V	513	406	228	202	140	112	93	60	41.2	28.4	24.4	12.6
10.5V	489	385	217	196	136	108	91	59	40.8	27.8	24.2	12.5
10.8V	465	367	207	188	132	106	89	58	39.3	27.3	24.0	12.4

End Voltage (V)	Minute (M)				Hour (H)
End Voltage (V)	10	15	30	45	1	1.5	2	3	5	8	10	20
Constant Power Discharge Data Sheet (@25ºC) Unit: W
9.6V	5303	4627	3071	2151	1790	1306	976	728	471	355	276	149
9.9V	5052	4396	2924	2080	1747	1273	953	712	458	348	273	148
10.2V	4810	4198	2785	2010	1704	1243	930	694	446	343	270	145
10.5V	4581	3997	2653	1942	1663	1213	908	677	437	336	267	144
10.8V	4363	3807	2526	1876	1622	1181	885	659	426	329	264	143

Description
Reviews (0)

Description

Designed floating charging service life: 12 years (25ºC)
By using strong grids, high purity lead and patented Gel electrolyte
Safety valve installation for explosion proof, Sealed and maintenance free operation
Extremely low self-discharge characteristic
Wide operating temperature range from -20ºC~55ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion
