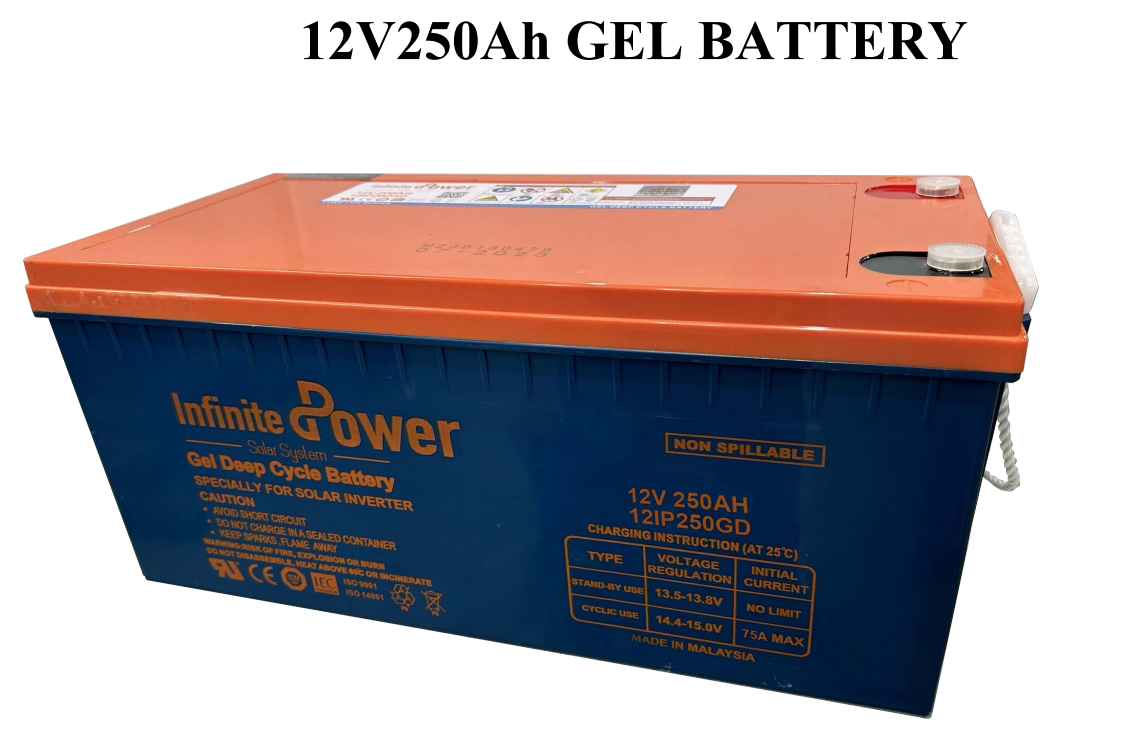

INFINITE GEL Deep Cycle Battery — IP12-250 [GEL 12V250Ah]

Discount up to 35% for first purchase only this month.

0 review

Rated 5 out of 5

Categories GEL Deep Cycle Battery, INFINITE

Nominal Voltage	12 V
Capacity (25ºC) — 10HR (10.8V)	250Ah
Capacity — 5HR (10.5V)	174Ah
Capacity — 1HR (9.60V)	120Ah
Dimension — Length	521±2mm (20.51inch)
Dimension — Width	269±2mm (10.59inch)
Dimension — Height	220±2mm (8.66inch)
Total Height	T5: 242±2mm (9.53inch)
Total Height (alt)	T11: 223±2mm (8.78inch)
Approx. Weight	70.5kg ±3%
Terminal type	T5/T11
Internal resistance (Fully charged, 25ºC)	Approx. 3 mΩ
Capacity affected by temperature (10HR) — 40℃	102%
Capacity by temp — 25℃	100%
Capacity by temp — 0℃	85%
Capacity by temp — -15℃	65%
Self-discharge (25ºC) — 3 month	Remaining Capacity: 91%
Self-discharge — 6 month	Remaining Capacity: 82%
Self-discharge — 12 month	Remaining Capacity: 65%
Nominal operating temperature	25℃±3℃ (77℉±5℉)
Operating temperature range — Discharge	-15℃~50℃ (5℉~122℉)
Operating temp — Charge	-10℃~50℃ (14℉~122℉)
Operating temp — Storage	-20℃~50℃ (-4℉~122℉)
Float charging voltage (25ºC)	13.50 to 13.80V, Temperature compensation: -18mV/℃
Cyclic charging voltage (25ºC)	14.50 to 14.90V, Temperature compensation: -30mV/℃
Maximum charging current	80A
Terminal material	Copper
Maximum discharge current	1800A (5 sec.)
Designed floating life (20ºC)	12 years

Technology: Absorbent glass mat technology; Gel technology; ABS container.

Constant Current Discharge Characteristics (A, 25ºC)
F.V/TIME	15min	30min	60min	2h	3h	4h	5h	6h	8h	10h	20h
9.60V	413	250	155	91.4	63.8	52.3	44.6	39.0	30.6	25.5	13.4
9.90V	403	245	153	90.8	63.4	52.0	44.4	38.8	30.4	25.4	13.3
10.2V	388	238	149	90.0	62.9	51.6	44.1	38.5	30.2	25.3	13.3
10.5V	375	232	146	88.7	62.5	51.3	43.8	38.3	30.0	25.2	13.2
10.8V	355	223	141	86.4	60.6	49.7	42.4	37.1	29.1	25.0	13.1

Note: The above characteristics data can be obtained within three charge/discharge cycles.

Constant Power Discharge Characteristics (Watt, 25ºC)
F.V/TIME	15min	30min	60min	2h	3h	4h	5h	6h	8h	10h	20h
9.60V	4529	2805	1767	1058	750	615	527	461	364	304	160
9.90V	4421	2749	1740	1052	745	611	524	458	361	303	160
10.2V	4257	2665	1696	1042	740	607	521	455	359	302	160
10.5V	4113	2600	1663	1027	735	603	517	452	356	301	159
10.8V	3895	2505	1612	1001	713	585	502	439	346	299	158

Note: The above characteristics data can be obtained within three charge/discharge cycles.
