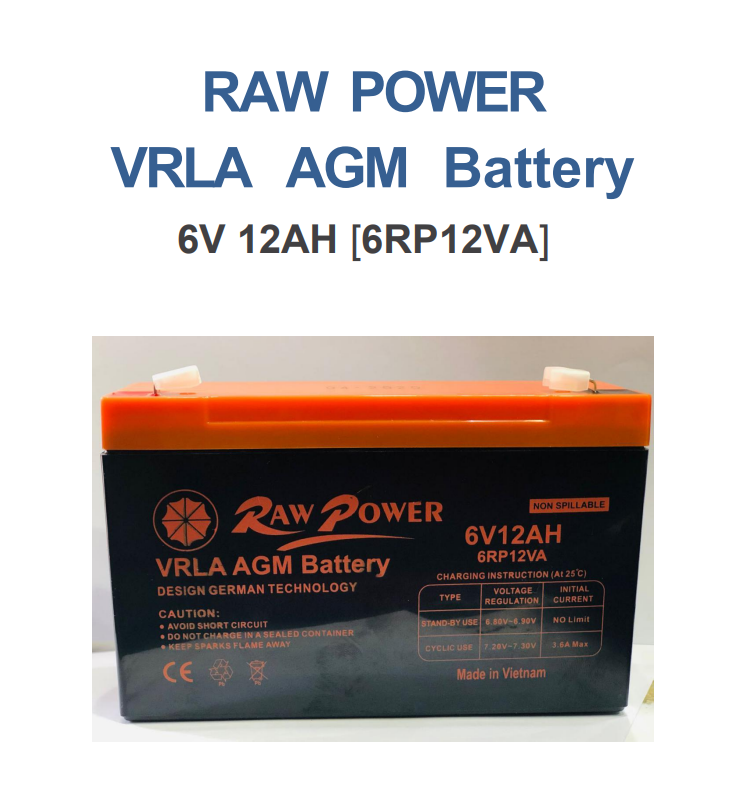

RAW POWER VRLA AGM Battery — 6V 12AH [6RP12VA]

RAW POWER VRLA AGM Battery — 6V 12AH [6RP12VA]

0 review

Rated 5 out of 5

Designed floating charging service life: 8 years (25ºC)
Sealed and maintenance free operation
Safety valve installation for explosion proof
Low self-discharge characteristic
Wide operating temperature range from 0ºC~40ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Designed floating charging service life: 8 years (25ºC)
Sealed and maintenance free operation
Safety valve installation for explosion proof
Low self-discharge characteristic
Wide operating temperature range from 0ºC~40ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion

Chat on WhatsApp

Categories RAW POWER, VRLA AGM Battery

Nominal Voltage	6V
Nominal Capacity (20HR)	12AH
Length (L)	151±1mm
Width (W)	51±1mm
Height (H)	94±2mm
Total Height (TH)	99±2mm
Weight ±3%	Approx 1.72kg (3.79lbs)
Internal Resistance	≈6.7 mΩ
Standard Terminals	F02 (standard)

Rated Capacity
20 hour rate (0.6A)	12.2AH
10 hour rate (1.2A)	11.82AH
5 hour rate (2.04A)	10.10AH
27 minute rate (12A)	6.00AH
7 minute rate (36A)	4.20AH

Capacity affected by Temperature
40ºC (104ºF)	103%
25ºC (77ºF)	100%
0ºC (32ºF)	86%

Cycle Application

Limit initial current less than 3.6A.
Charge until battery voltage (under charge) reaches 7.05V to 7.20V at 25ºC (77ºF).
Hold at 7.05V to 7.20V until current drop to under 0.072A for at least 3 hours.
Temperature compensation coefficient of charging voltage is -15mV/ºC.

Standby Service

Hold battery across constant voltage source of 6.8 to 6.9 volts with current limit 3.6A continuously. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charge status.
Temperature compensation coefficient of charging voltage is -9mV/ºC.

End Voltage (V)	Minute (M)					Hour (H)
End Voltage (V)	5	10	15	30	45	1	1.5	2	3	5	8	10	20
Constant Current Discharge Data Sheet (Amperes at 25ºC)
5.10	44.4	28.9	22.6	11.5	8.38	7.20	5.73	4.26	3.22	2.06	1.38	1.16	0.612
5.25	44.0	28.6	22.4	11.5	8.30	7.15	5.63	4.10	3.11	2.02	1.37	1.15	0.606
5.40	43.5	28.3	22.2	11.3	8.22	7.10	5.52	3.94	3.00	1.98	1.35	1.14	0.600

End Voltage (V)	Minute (M)					Hour (H)
End Voltage (V)	5	10	15	30	45	1	1.5	2	3	5	8	10	20
Constant Power Discharge Data Sheet (Watt at 25ºC)
5.10	242	175	141	79.70	58.10	44.21	33.91	25.51	18.21	12.00	8.45	6.84	3.68
5.25	232	169	137	78.05	56.80	43.51	33.41	25.15	17.80	11.87	8.39	6.74	3.63
5.40	220	163	133	75.80	55.35	42.79	32.92	24.79	17.49	11.73	8.30	6.63	3.58

Description
Reviews (0)

Description

Designed floating charging service life: 8 years (25ºC)
Sealed and maintenance free operation
Safety valve installation for explosion proof
Low self-discharge characteristic
Wide operating temperature range from 0ºC~40ºC
Lead Aluminum calcium Tin alloy high energy, prevent corrosion
